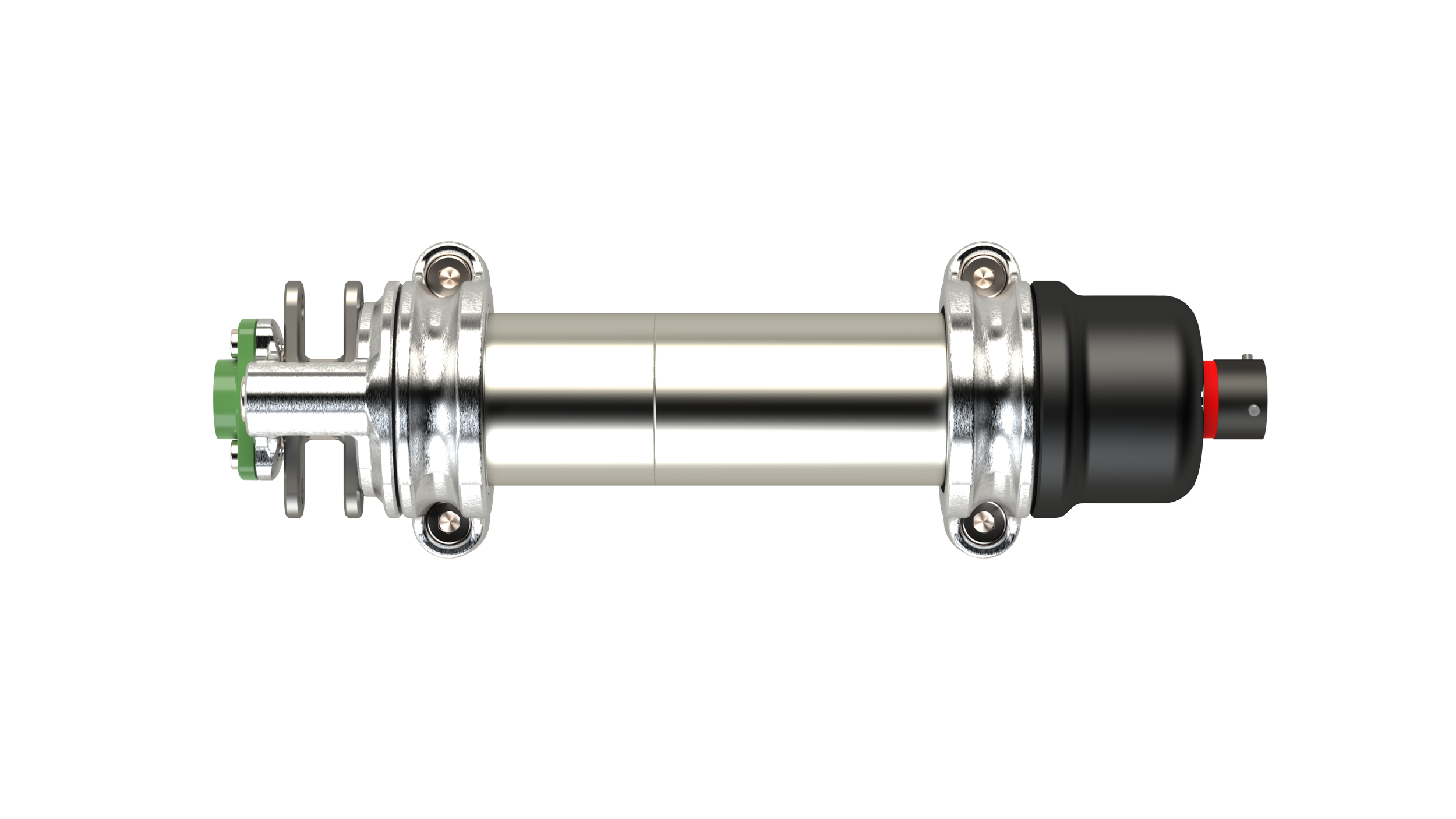

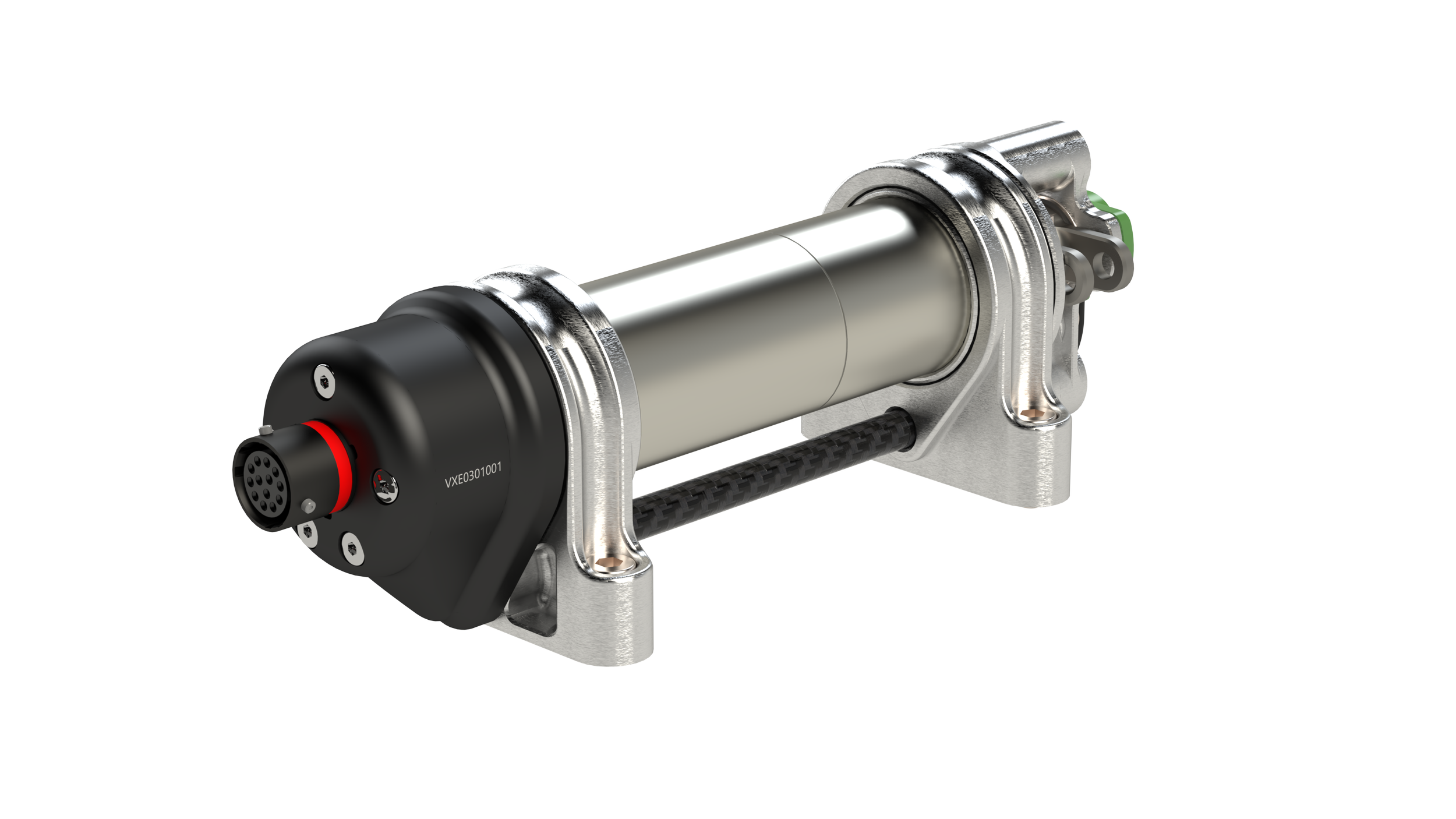

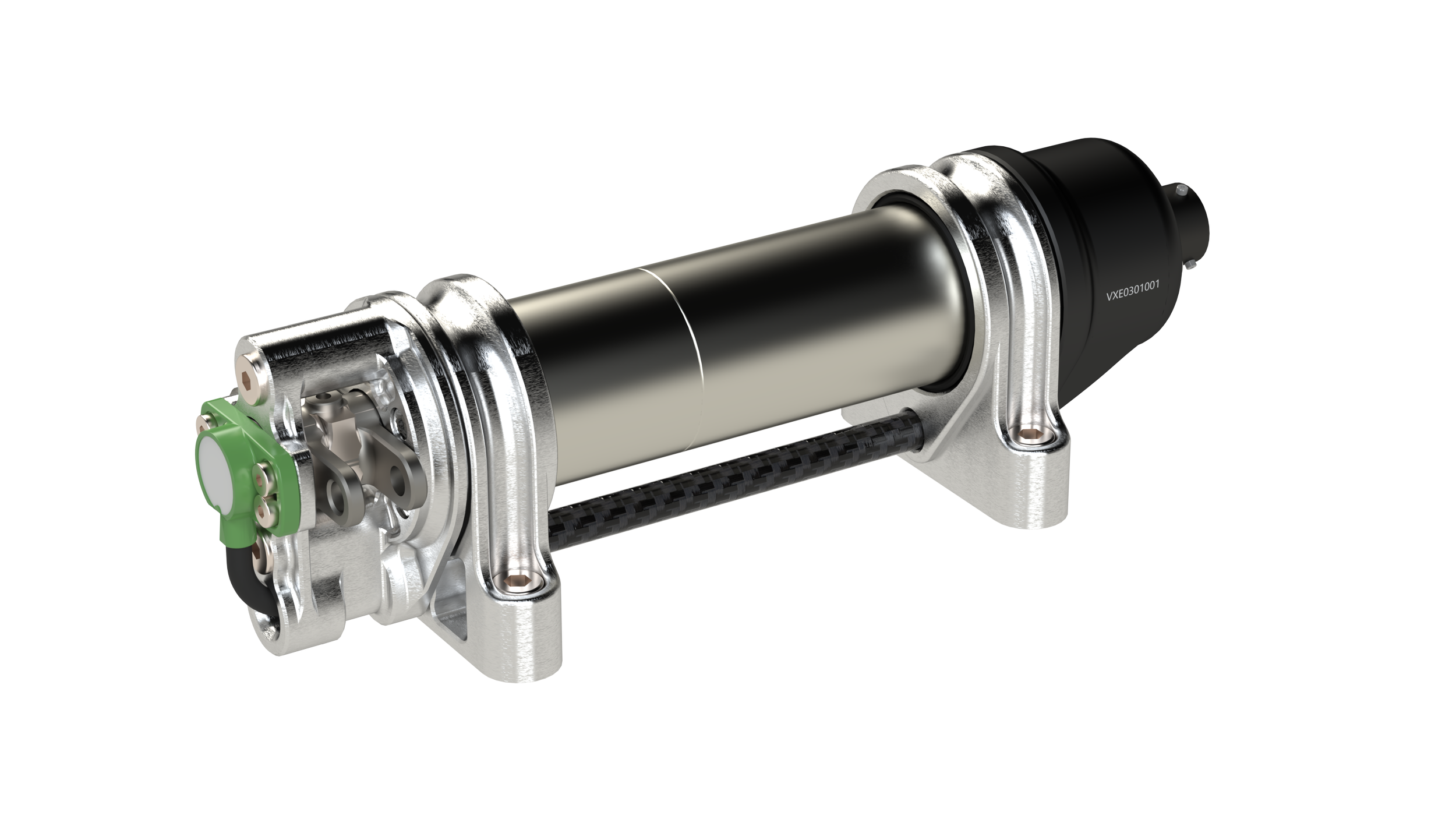

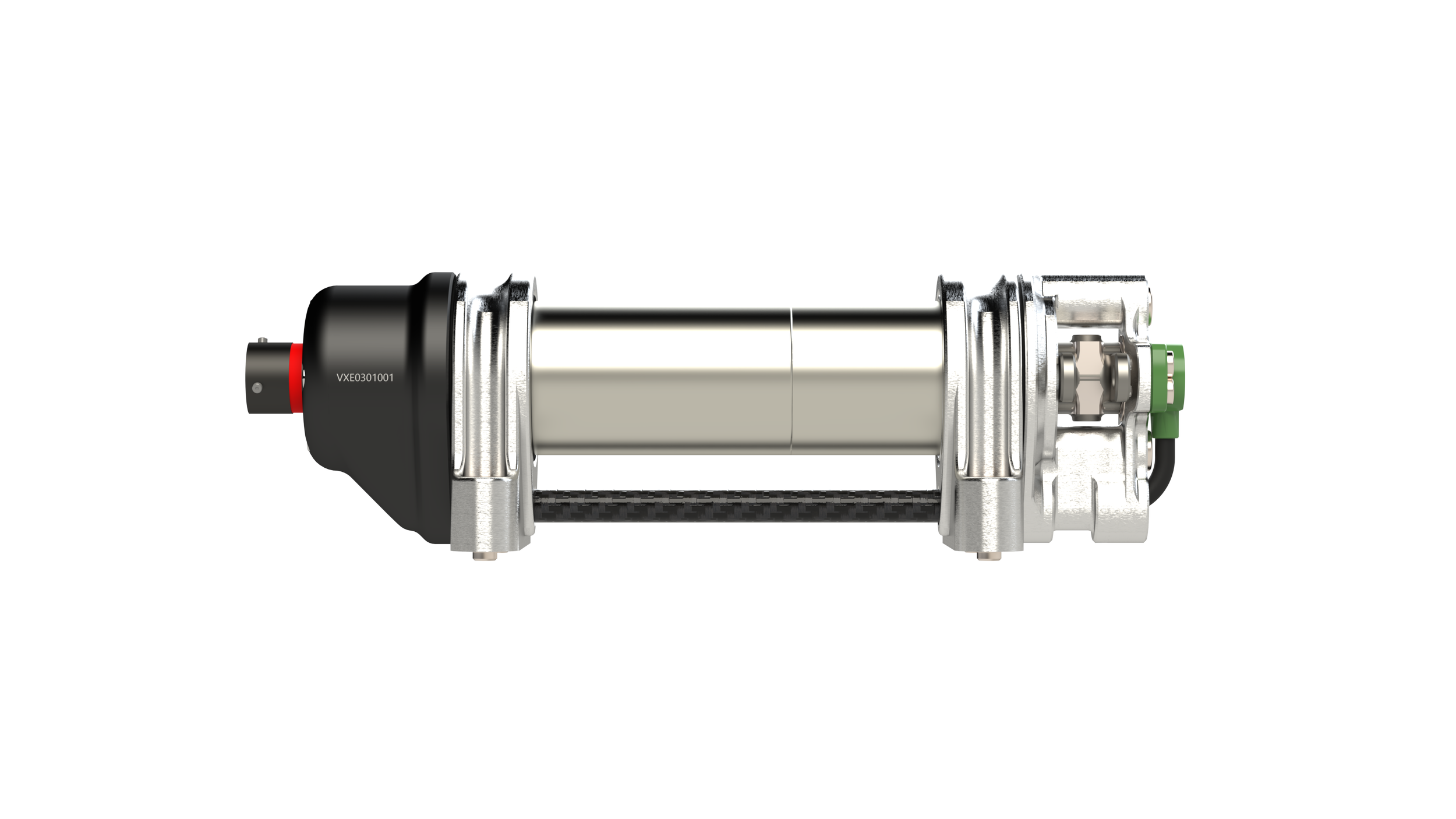

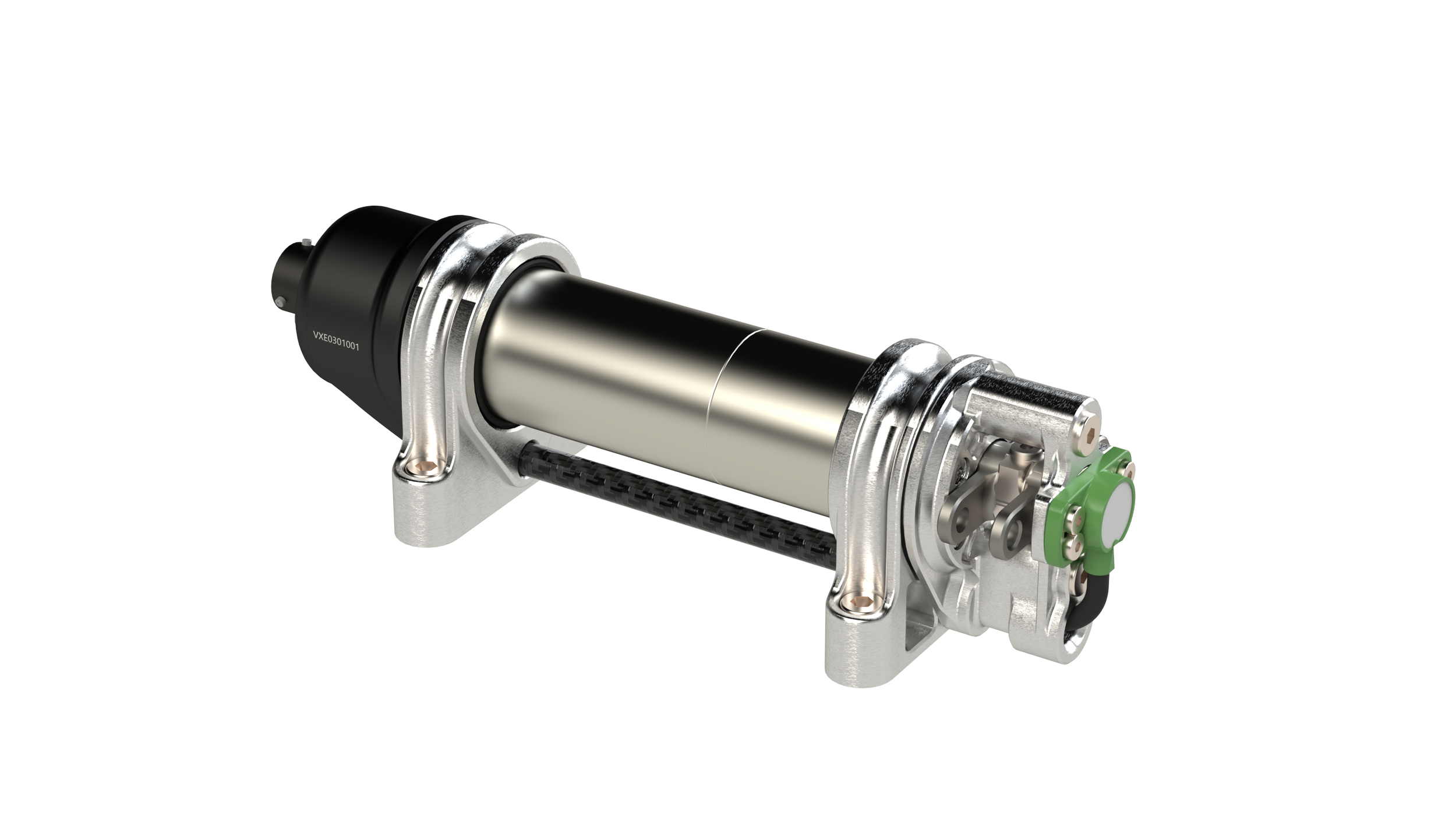

VXE DBW Actuator
the DBW actuator is designed for use in butterfly and barrel throttle body designs. It is designed to be mounted on a bank of up to 6 valves in close proximity to avoid heat distortion across the engine. The Swiss gearmotor is vibration isolation mounted in Aerospace aluminium, with a titanium output rocker.
Specifications:
Torque: 2.4NM nominal, c.5.5NM stall
Current: 6A Nominal
Stall Current Limited: 20A - Internal fuse resets when stall is relieved
Connector: AS010 Connector integrates position sensor and drive control
Weight: 815 grams
Dimensions: L193.5xH57xW60.5
Mounting: 4x M5 Cap Screws
Products made to order and may have a leadtime of up to 8 weeks - please enquire on stock levels if delivery is required quicker.
CAD supplied with purchase.
Control rods not inlcuded, can be supplied to specification at additional cost.
Designed for race use. This product is not certified and is sold as a prototype component for use by competent engineers in integration to their own designs. Motorsport Engineering holds no liability for the use of this product or any others sold by Motorsport Engineering.
